Scout 360™ - Deployable Dropdown Underwater Camera - 50m cable (164 ft)
Scout 360™ - Deployable Dropdown Underwater Camera - 50m cable (164 ft)
Couldn't load pickup availability
```html
Scout 360™ by Reefscope™ is a deployable 360 underwater fishing camera built for anglers, guides, divers, boat owners, and marine professionals who already have their own compatible monitor, chartplotter, MFD, DVR, or marine display.

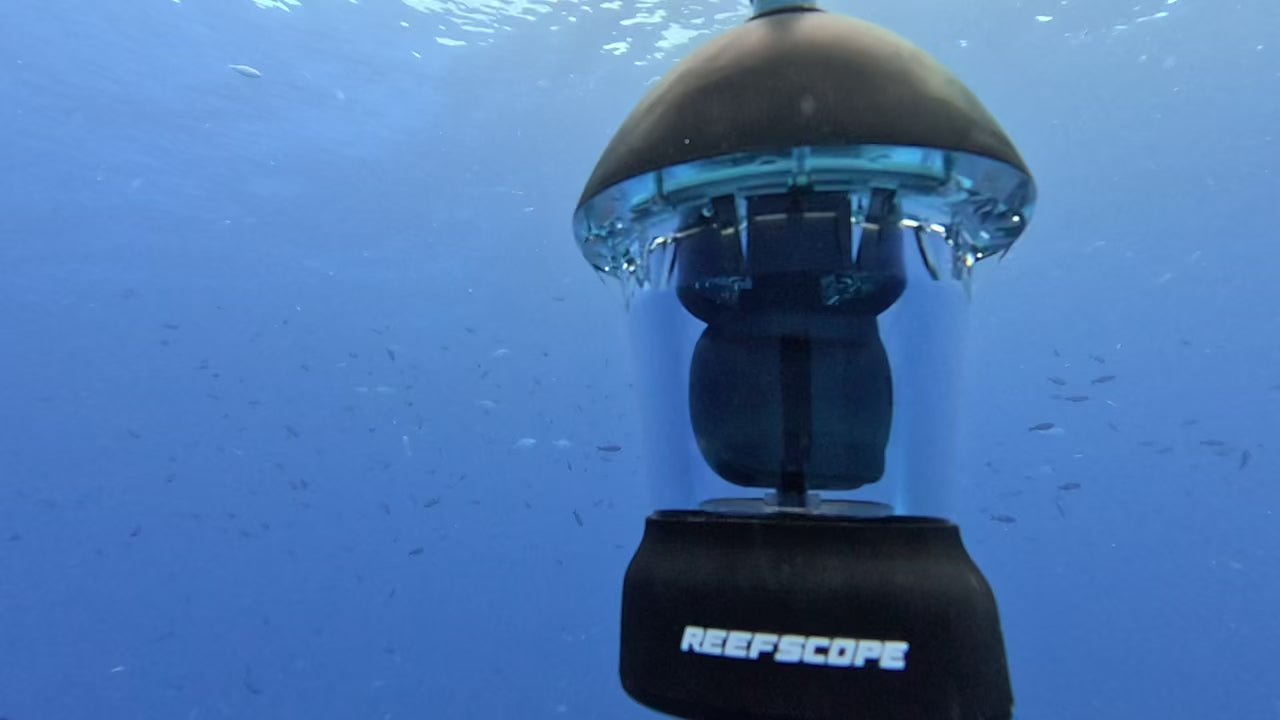

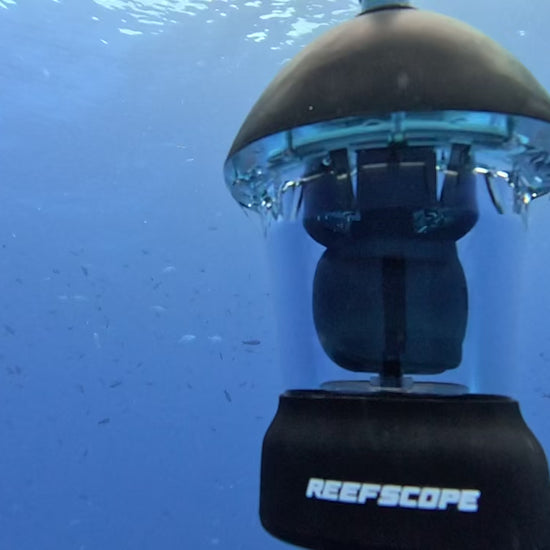

This camera-only package includes a 360° panning Sony CCD underwater camera, 50 meters / 164 feet of marine-grade tether cable, heavy-duty cable reel, wired panning controller, built-in LED illumination, analog composite video output, and 12V DC power connection.
Drop it into the water while drifting, anchored, or stopped over structure. Rotate the camera underwater and send live analog video to your existing display system. No Wi-Fi, no apps, no lag — just direct underwater visibility.
Deployable 360° Underwater Camera for Your Existing Display
The Scout 360™ camera-only system is designed for boaters who want a professional underwater camera system without an additional display case or monitor. Connect it to a compatible marine MFD, chartplotter, portable monitor, DVR, or onboard video system that accepts analog video input.
Use it as an underwater fishing camera, marine drop camera, reef scouting camera, boat inspection camera, ice fishing camera, underwater structure camera, or live underwater viewing system.
Included with the Scout 360™ Camera-Only System
- Scout 360™ underwater camera with 360° horizontal rotation
- 50m / 164 ft marine-grade tether cable
- Heavy-duty cable reel
- 12 white high-intensity LED lights
- Wired panning controller with 3 selectable speeds
- Analog composite video output cable
- 12V DC power cable with 2.1mm barrel plug
Display not included. This camera-only version is made for users who already have a compatible monitor, MFD, chartplotter, DVR, or marine display that accepts analog video input.
Best Uses for the Scout 360™ Camera-Only System
- Scouting reef, wrecks, ledges, rocks, bridges, docks, and underwater structure
- Finding fish, bait, lobster, snapper, grouper, snook, and other marine life
- Checking water clarity, bottom layout, reef condition, and structure before fishing or diving
- Inspecting traps, anchors, moorings, props, hulls, and running gear
- Recovering lost anchors, tools, fishing gear, dive gear, and equipment
- Inspecting dock pilings, seawalls, boats, marinas, and underwater work areas
- Connecting to an existing boat MFD, portable monitor, DVR, or marine video display
- Entertaining guests with a live underwater view from the boat
Technical Specifications
| Feature | Specification |
|---|---|
| Image Sensor | Sony CCD Color |
| Rotation | 360° horizontal rotation via wired controller |
| Cable Length | 50 meters / 164 feet |
| Lighting | 12x white LED lights |
| Viewing Angle | 92° |
| Video Output | CVBS analog video, 1.0Vp-p, 75Ω |
| Power Input | 12V DC with 2.1mm barrel plug |
| System Format | PAL / NTSC compatible |
| Power Consumption | 2.5W camera only |
| Operating Temperature | 14°F to 122°F / -10°C to +50°C |
| Storage Temperature | -4°F to 140°F / -20°C to +60°C |
| Minimum Illumination | 1.0 Lux |
| Panning Speeds | 3.0°/s, 6.4°/s, 11.6°/s |
| Camera Weight | Approx. 1.94 lbs / 0.88 kg, camera only |
| Camera Dimensions | Approx. 6" height x 4" diameter, camera only |
Connects to Compatible MFDs, Monitors, and DVRs
The Scout 360™ camera-only system outputs standard CVBS analog video, making it a simple option for boaters who already have a compatible video display setup. It can be used with many marine monitors, DVR systems, portable screens, and multifunction displays that support analog video input.
This version is ideal for users who want the deployable 360° underwater camera, reel, tether cable, and controller, but plan to handle viewing, recording, or display integration through their own equipment.
Why Choose a Camera-Only 360° Underwater System?
A complete display package is great for portability, but a camera-only underwater system is the right choice when your boat already has a compatible monitor, MFD, chartplotter, or recording setup. It keeps the package lighter, simpler, and focused on the core underwater camera hardware.
The Scout 360™ lets you visually inspect underwater structure, fish behavior, reef conditions, water clarity, traps, gear, anchors, and bottom layout in real time. The 360° panning design allows you to rotate the camera underwater instead of constantly lifting and repositioning it.
Common searches for this product include underwater fishing camera, 360 underwater camera, boat camera, marine camera, MFD camera, chartplotter camera, fishing camera for boat, drop camera, reef camera, underwater inspection camera, fishing video camera, portable underwater camera, analog underwater camera, and live underwater viewing system.
```
